The NWP300 is a Dante™/AES67 network input panel, featuring a single 3.5 mm stereo jack stereo input connection and an integrated Bluetooth receiver, which can be used to transmit audio signals in a Dante™ audio network.
Various further integrated DSP functions such as EQ, automatic gain control, and other device settings can be configured through the AUDAC Touch™.
The IP-based communication makes it future-proof while also being backwards compatible with many existing products. Thanks to the limited PoE power consumption, NWP300 is compatible with any PoE network-based installation.

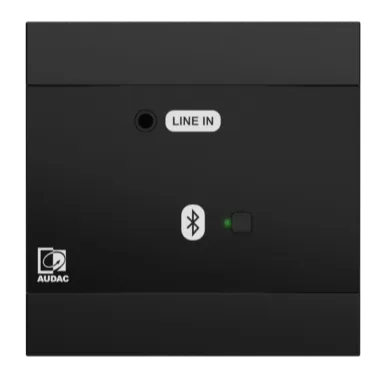

Besides the elegant design, the front panel is finished with high-quality fingerprint-resistant glass. The wall panels are compatible with standard EU-style in-wall boxes, making the wall panel the ideal solution for solid and hollow walls. Black and white colour options are available to blend into any architectural design.
Features
- 4x4 Dante™/AES67 I/O
- Mix any or all inputs internally to save channels on both sides
- Full DSP processing with WaveDynamics™ support
- All mixing and processing is easily done from AUDAC Touch™
- Enable Bluetooth or disable the button functions completely from AUDAC Touch™
- 3.5mm stereo jack input
- Integrated Bluetooth receiver
Specifications
| Inputs | Bluetooth | |
| 3.5 mm Jack | ||
| Control | 1 button - Bluetooth discoverable | |
| Indicators | 1 LED (RGB) - Bluetooth status | |
| Configurable settings | IP settings | |
| Device name | ||
| Gain | ||
| DSP (EQ) | ||
| Mixing | ||
| Configuration | Audac Touch™ | |
| Integrated DSP | Yes (EQ) | |
| Automatic level control | Yes | |
| Power | Supply | PoE powered (IEEE 802.3at) |

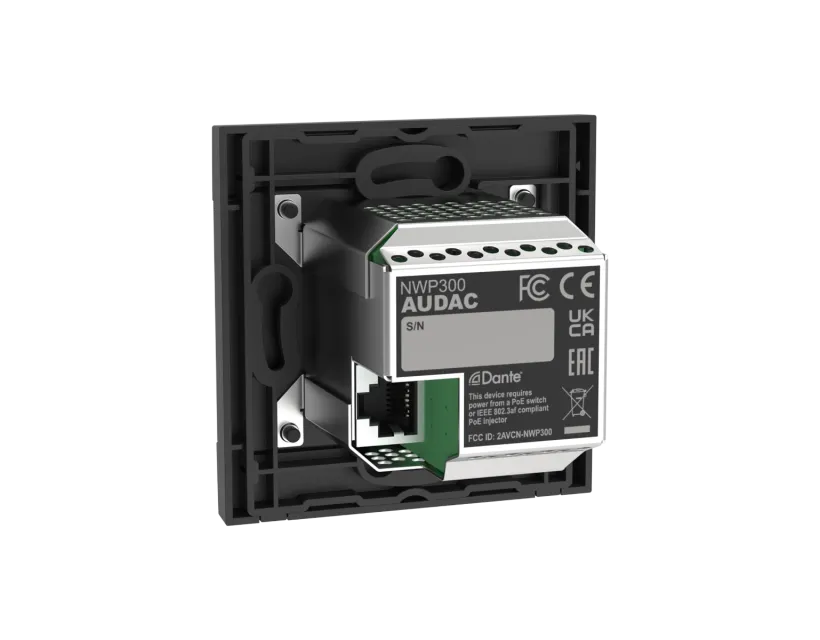

| Connectors | RJ45 (network PoE) | |
| 3.5 mm Jack stereo | ||
