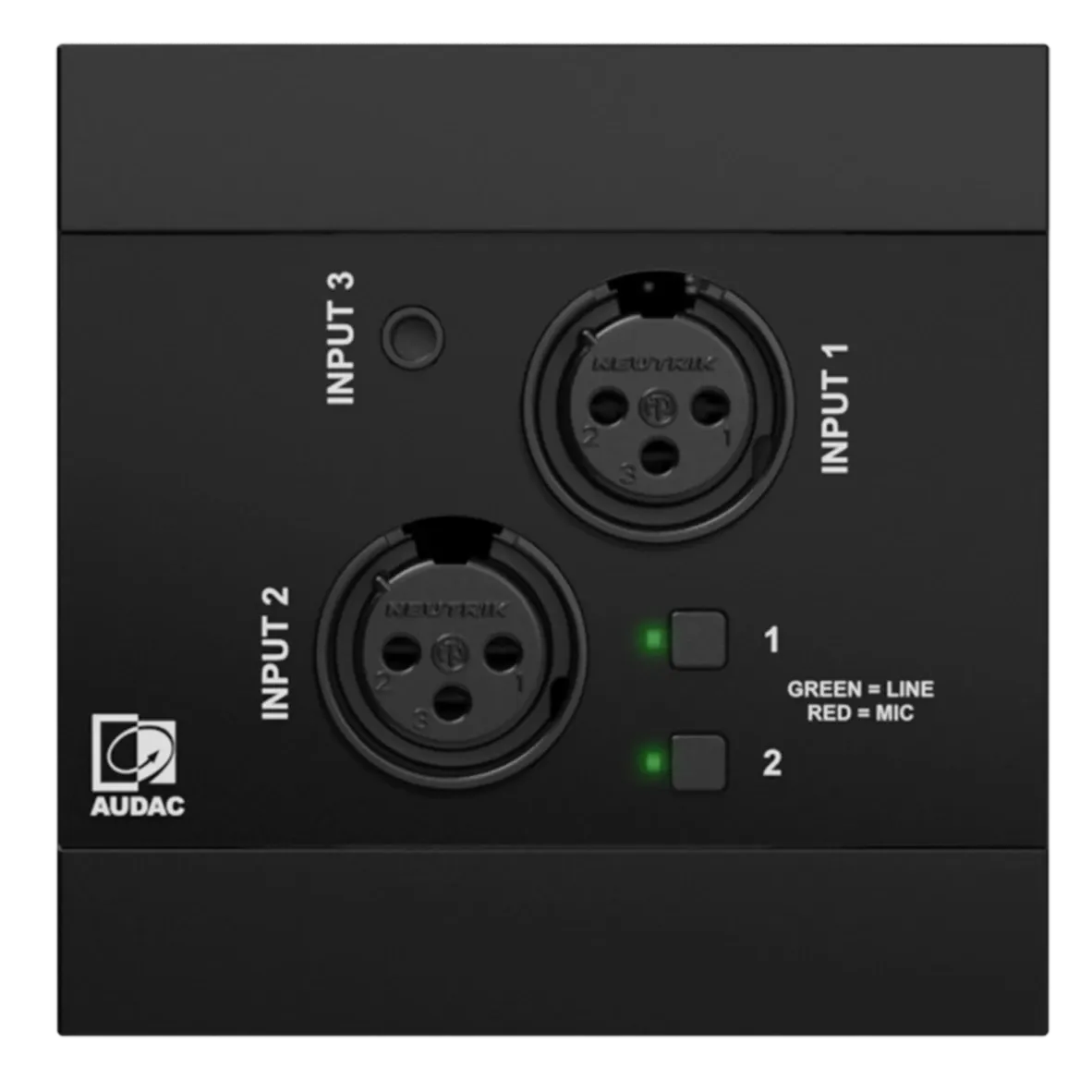

The NWP320 is a Dante™/AES67 network input panel, featuring two XLR input connectors, a single 3.5 mm stereo jack stereo input connection, and an integrated Bluetooth receiver, which can be used to transmit audio signals in a Dante™ audio network.
Various further integrated DSP functions such as EQ, automatic gain control, and other device settings can be configured through the AUDAC Touch™.
The IP-based communication makes it future-proof while also being backwards compatible with many existing products. Thanks to the limited PoE power consumption, NWP320 is compatible with any PoE network-based installation.
Besides the elegant design, the front panel is finished with high-quality fingerprint-resistant glass. The wall panels are compatible with standard EU-style in-wall boxes, making the wall panel the ideal solution for solid and hollow walls. Black and white colour options are available to blend into any architectural design.
Features
- 2 x XLR inputs
- 3.5mm stereo jack input
- Integrated Bluetooth receiver
- Internal mixing & DSP processing
- 4x4 Dante™/AES67 I/O
Specifications
| Inputs | 2 x XLR female (in) | |
| 3.5 mm Jack (Stereo) | ||
| Control | 2 buttons - Mic / Line switching | |
| Indicators | 2 LED’s (RGB) - Input status | |
| Configurable settings | IP settings | |
| Device name | ||
| Input range (Mic / Line) | ||
| Gain | ||
| Phantom power | ||
| DSP (EQ) | ||
| Mixing | ||
| Configuration | Audac Touch™ | |
| Integrated DSP | Yes (EQ) | |
| Automatic level control | Yes | |
| Phantom power | 48 V DC | |
| Power | Supply | PoE powered (IEEE 802.3at) |
| Connectors | 3.5 mm Jack stereo (audio in) | |
| RJ45 (network PoE) | ||
| 1 x XLR female (audio in) | ||
