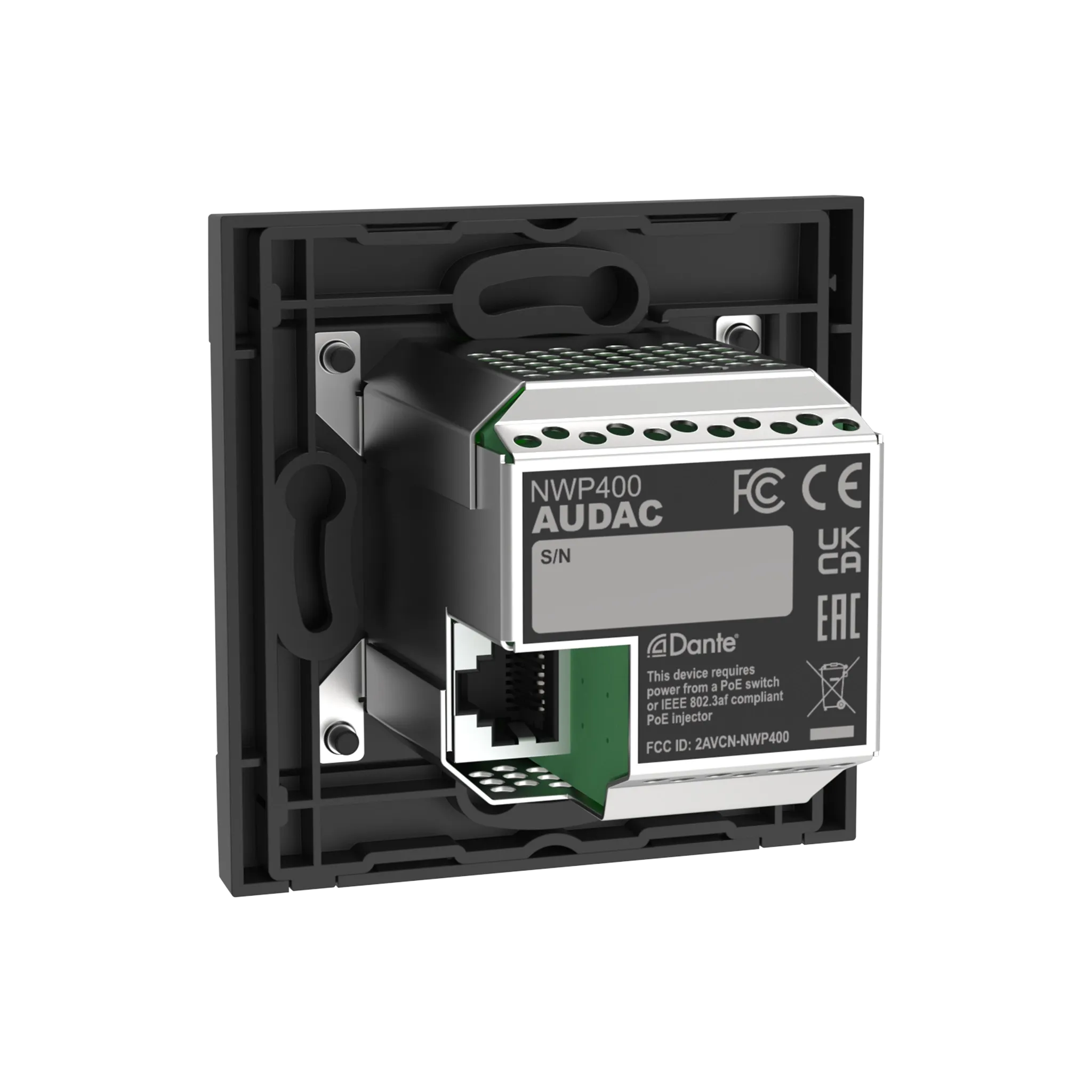

The NWP400 is a Dante™/AES67 network input panel, featuring a USB Type-C port, and an integrated Bluetooth receiver, which can be used to transmit audio signals in a Dante™ audio network.
Various further integrated DSP functions such as EQ, automatic gain control, and other device settings can be configured through the AUDAC Touch™.
The IP-based communication makes it future-proof while also being backwards compatible with many existing products. Thanks to the limited PoE power consumption, NWP400 is compatible with any PoE network-based installation.

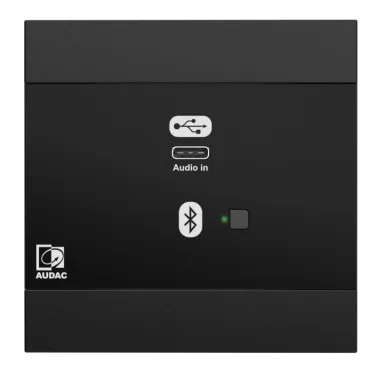

Besides the elegant design, the front panel is finished with high-quality fingerprint-resistant glass. The wall panels are compatible with standard EU-style in-wall boxes, making the wall panel the ideal solution for solid and hollow walls. Black and white colour options are available to blend into any architectural design.
Features
- Front USB type-C port
- Integrated Bluetooth receiver
- Internal mixing & DSP processing
- 4x4 Dante™/AES67 I/O
Specifications
| Inputs | Bluetooth | |
| USB Type C (in) | ||
| Control | 1 button - Bluetooth discoverable | |
| Indicators | 1 LED (RGB) - Bluetooth status | |
| Configurable settings | IP settings | |
| Device name | ||
| Gain | ||
| DSP (EQ) | ||
| Mixing | ||
| Configuration | Audac Touch™ | |
| Integrated DSP | Yes (EQ) | |
| Automatic level control | Yes | |
| Power | Supply | PoE powered (IEEE 802.3at) |
| Connectors | USB Type C (audio in) | |
| RJ45 (network PoE) | ||
